Online NS0-521 Exam Dumps Help You Build Confidence

Practicing with Network Appliance NCIE-SAN Specialist Certification NS0-521 exam dumps questions can help you build confidence and reduce exam anxiety. By familiarizing yourself with the types of questions you can expect to see on the NS0-521 Implementation Engineer - SAN ONTAP Exam exam and mastering the concepts and skills required to answer them, you can approach the exam with greater confidence and a sense of calm. Besides, NS0-521 dumps questions can help you achieve this level of knowledge and confidence. Study free Network Appliance NS0-521 exam dumps below.

Page 1 of 2

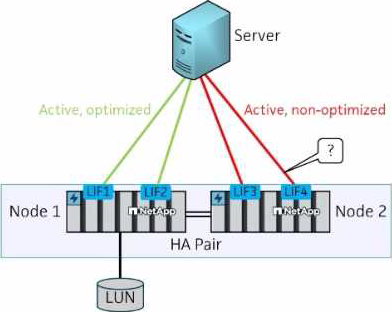

1. Click the Exhibit button.





A customer is testing a newly installed NetApp AFF A400 all-flash HA storage system. An SVM for FCP with a LUN on Node 1 has been configured, and a server has been connected as shown in the exhibit. For testing, the engineer plans to do a storage failover of Node 1.

After the failover, what is the expected status of the marked path?

Unavailable

Active/Optimized

Active/Nonoptimized

Offline

 Loading...

2. A storage administrator recently implemented ISCSI SAN in a customer environment.

Which two actions should be done to ensure the best performance? (Choose two.)

Connect host and storage ports to the same switches.

Decrease the default queue depth on the host to eight.

Zone the host by using the host WWPNs.

Configure Jumbo frames In the entire data path.

 Loading...

3. What is the maximum size for a LUN in NetApp ONTAP 9.14.1 software?

16TiB

64TiB

128TiB

300TiB

 Loading...

4. An administrator is setting up a NetApp ONTAP AFF system for both NVMe/TCP and iSCSI.

Which task is required for SAN configuration?

Configure CHAP authentication.

Configure DH-HMAC-CHAP authentication.

Configure LIFs.

Configure IPsec.

 Loading...

5. An administrator runs the lun igroup show -insrar.ee command on a NetApp ONTAP SAN.





Based on the output, what is the initiator type?

NQN

WWNN

IQN

WWPN

 Loading...

6. A customer currently operates a legacy iSCSI storage environment that is connected to network switches with several Windows hosts. As part of an upcoming NetApp ONTAP software upgrade, an engineer needs to verify compatibility.

Which two NetApp tools would help the engineer assess the environment? (Choose two.)

BlueXP classification

Interoperability Matrix Tool

Active IQ OneCollect

Hardware Universe

 Loading...

7. A customer has data in a LUN on an existing third-party SAN storage system that will be migrated to a new NetApp AFF A400 all-flash MetroCluster system. The host connected to the LUN is a Windows Server 2019 system.

In this scenario, which two methods are supported? (Choose two.)

SnapMirror Business Continuity

Foreign LUN Import in online mode

Foreign LUN Import in offline mode

Client-side copy of the data

 Loading...

8. When using tagged VLANs on Cisco Nexus switches for NVMe over TCP, which two changes must be made to enable jumbo frames? (Choose two.)

Modify the Cisco Nexus switches to use an MTU of 9216.

Modify the appropriate broadcast domain in NetApp ONTAP software to use an MTU of 9000.

Modify the appropriate broadcast domain in NetApp ONTAP software to use an MTU of 9216.

Modify the Cisco Nexus switches to use an MTU of 9000.

 Loading...

9. Which two steps must be taken first to restore a LUN from a SnapMirror Synchronous destination? (Choose two.)

Resync the relationship.

Release the relationship.

Delete the relationship.

Initialize the relationship.

 Loading...

10. On a two-node NetApp AFF ASA cluster, what is the recommended minimum number of paths for a SAN environment from the client host perspective?

2

8

4

16

 Loading...

Page 2 of 2

11. An administrator needs to configure Foreign LUN Import on a NetApp HA pair to migrate over FCP LUNs from a third-party array while serving other LUNs.

Which two actions are required to complete this task? (Choose two.)

Reboot the third-party array to prepare for the LUN import.

Convert all FC ports on each controller to an FC initiator port.

Create zoning from the third-party array to the cluster.

Convert a single FC port on each controller to an FC initiator port.

 Loading...

12. A customer needs to verify if jumbo frames have been configured correctly for an ISCSI workload.

Which command should be used?

pig -lif <1IF> -vserver -destination -disallow-fragmentation false -packet-size 1500

pig -lif <―F> -vserver -destination -disallow-fragmentation true -packet-size 9000

pig "lif -vserver -destination -disallow- fragmentation true -packet-size 8900

ping -lif -vserver -destination -disallow- fragmentation true -packet-size 1500

 Loading...

13. An SVM is created for FCP traffic. LUNs must be created to share with ESXi hosts for datastores.

Which two items must be configured after the LUN is created, for this to happen? (Choose two.)

Create an igroup with the ESXi hosts' WWPNs.

Create an igroup with the ESXi hosts' WWNNs.

Configure CHAP authentication.

Map the LUNs to the igroup.

 Loading...

14. During expansion planning for a 10-node cluster running NetApp ONTAP 9.14.1 software, which uses SAN and NAS, how many additional nodes can be added to this cluster?

4

6

2

8

 Loading...

15. An administrator is planning a SAN implementation and needs to validate that the ESXI host and NetApp ONTAP software releases are supported.

Which tool is used to accomplish this?

NetApp Interoperabilty Matrix Tool

NetApp Active IQ Config Advisor

NetApp Hardware Universe

Broadcom SAN Health

 Loading...

16. A NetApp AFF node in a four-node cluster has a single FC port on one node, which Is used for legacy tape backup. Tape is no longer needed, and the port is disconnected and modified for reuse in the FCP SAN.

Based on this change, which command will verify that the port is usable?

network interface show

lun persistent-reservation show

syszem node hardware unified-connect show

vserver fcp initiator show

 Loading...

17. An administrator finishes an installation of a new NetApp ASA system at the customer site and creates a new LUN. The customer wants to restrict the access of the LUN to specific UFs.

Where would the administrator configure this?

Zoning

igroup

Selective LUN Map

Portset

 Loading...

18. An administrator runs the vserver nvme namespace convert-from-iun command on a NetApp ASA cluster to increase host performance.

What is modified by the convert command?

FlexVol

FlexClone

LUN clone

Metadata

 Loading...

19. A LUN Is displaying 90% used space in the NetApp ONTAP CLI, but a Windows Server shows only 10% used space.

What is the first step to take to address this issue?

Enable automatic resizing.

Disable automatic resizing.

Disable space allocation.

Enable space allocation.

 Loading...

20. A customer opens a support case for performance issues with an FC Oracle database after migrating from a NetApp AFF system to a NetApp All SAN Array (ASA) platform. Further investigation shows that the number of paths exceeds the recommendation for SAN deployment.

What are two ways to address this problem? (Choose two.)

Use Selective LUN Mapping.

Reconfigure the fabric switch zoning.

Have the database team change their backup and recovery schedules for the database.

Reconfigure the ALUA settings.

 Loading...
